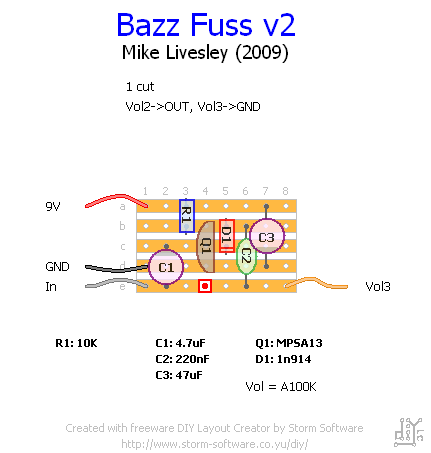

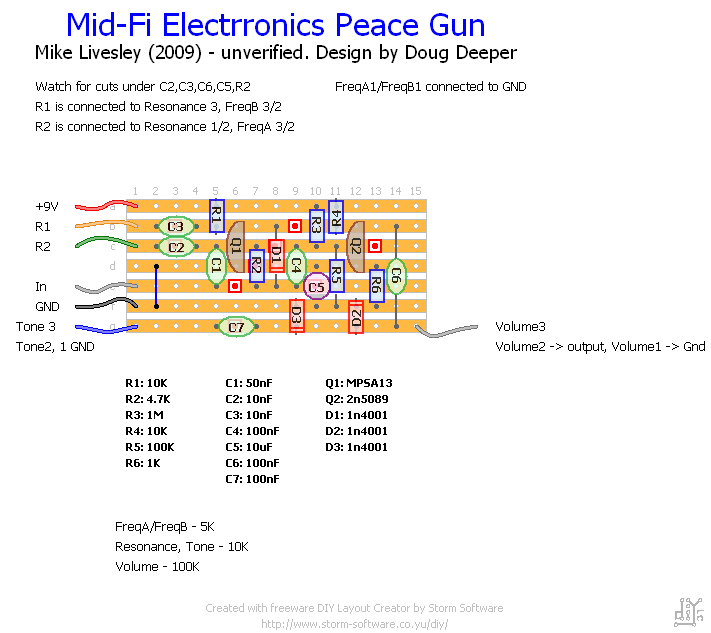

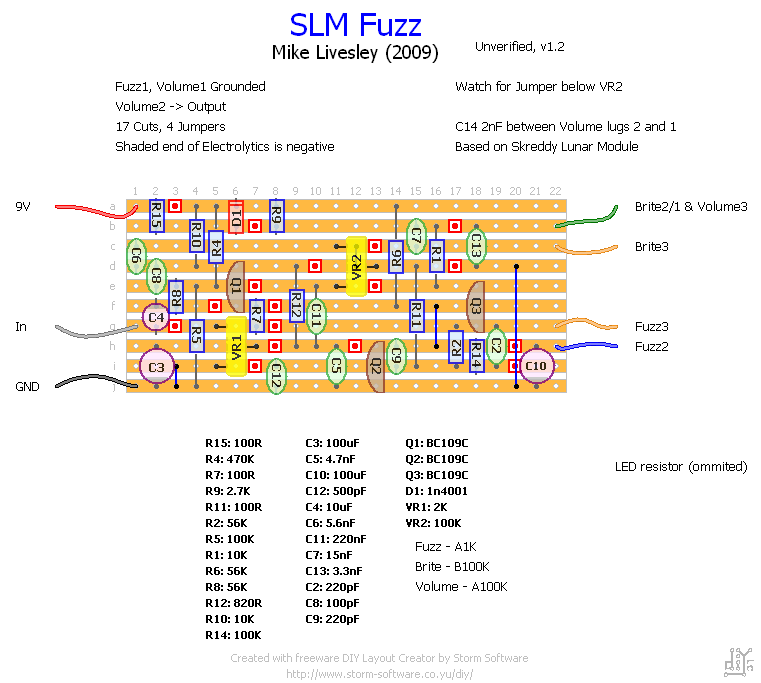

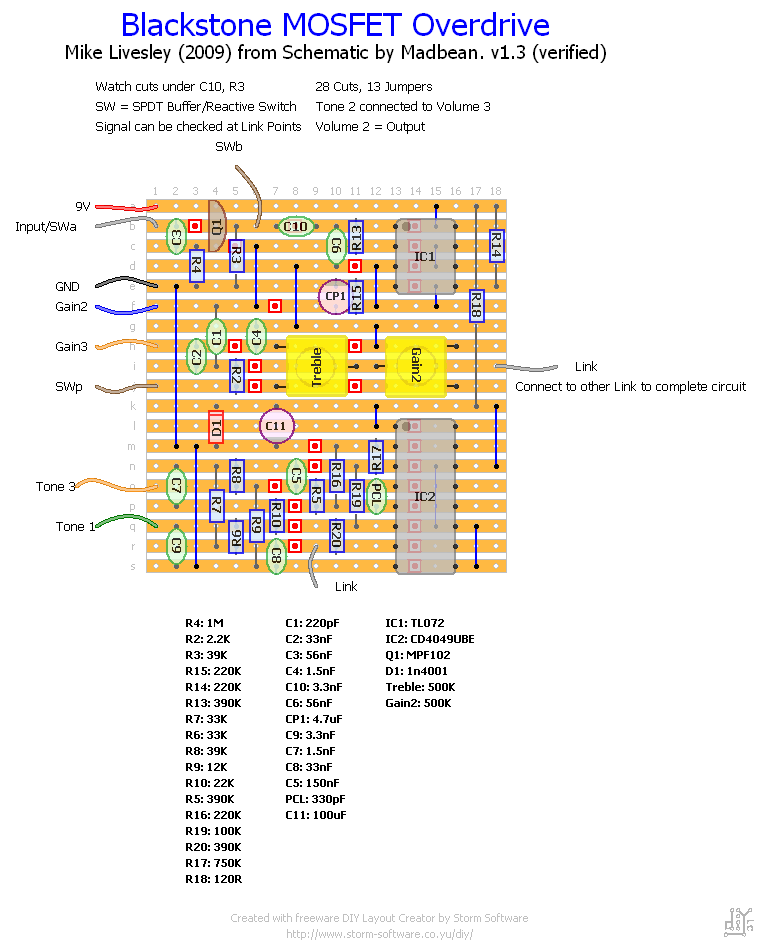

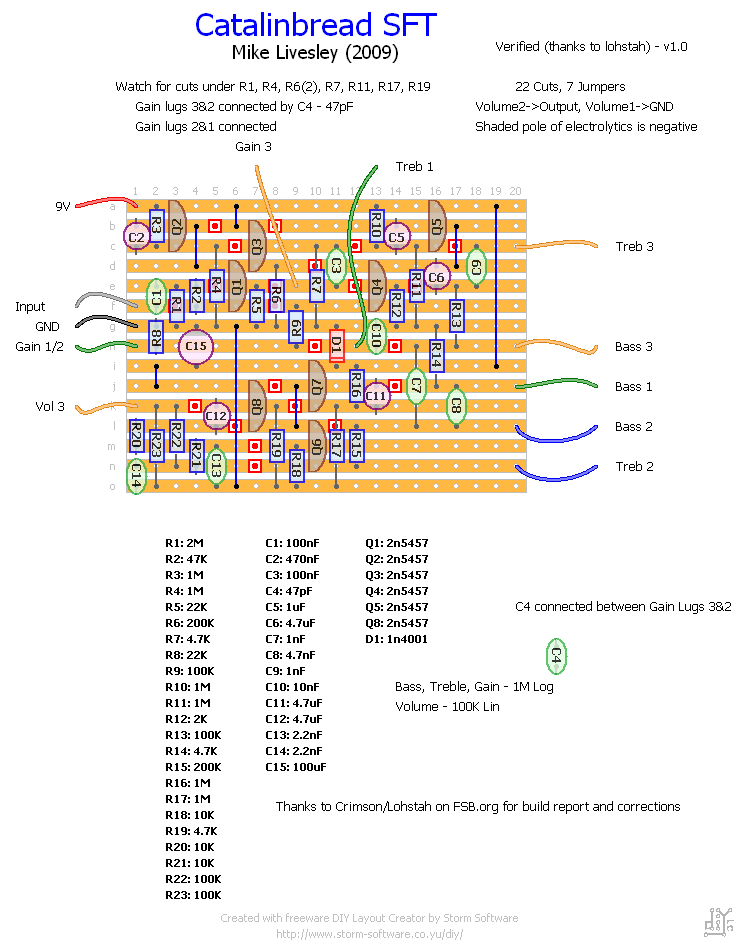

Veroboard Layouts for the hobbyist

Post by **Mike** » Fri Feb 05, 2010 3:39 pm

I figure these might be useful to some people here, I'll add them as I come across them and/or design them.

Bacchus · Post by **Bacchus** » Fri Feb 05, 2010 3:41 pm

Nice one.

Is this not dodgy grounds, legally?

Post by **Mike** » Fri Feb 05, 2010 3:44 pm

Not if I say this:

NOT FOR INDUSTRIAL/COMMERCIAL USE. ANY MISUSE OF REGISTERED TRADEMARKS IS AT YOUR OWN RISK.

IF YOU TRY TO PASS OFF PEDALS YOU HAVE BUILT AS THE REAL DEAL, YOU WILL GET SUED.

These are my IP actually, the layout of these circuits (which is the only patentable aspect) was created by me, and me alone. You can't patent a schematic, but you can PCB art/a circuit layout in physical space. I use my own.

Bacchus · Post by **Bacchus** » Fri Feb 05, 2010 3:46 pm

Ha, nice one.

Post by **dots** » Fri Feb 05, 2010 7:28 pm

looks great!

lorez · Post by **lorez** » Mon Feb 08, 2010 2:51 pm

Brilliant Mike, I'm sure this will offer some fun in the future

Cheers

Chris

dawnofzion · Post by **dawnofzion** » Tue Feb 09, 2010 2:53 pm

Thanks mike!

Post by **Mike** » Tue Feb 09, 2010 3:01 pm

No worries. I'm sure you guys will make awesome pedals based on these.

sp3k · Post by **sp3k** » Tue Feb 09, 2010 4:48 pm

thanks mike. I'm finally on vacation, tomorrow i'm buying some components and mounting some of those schemes on my breadboard

Haze · Post by **Haze** » Tue Feb 09, 2010 5:56 pm

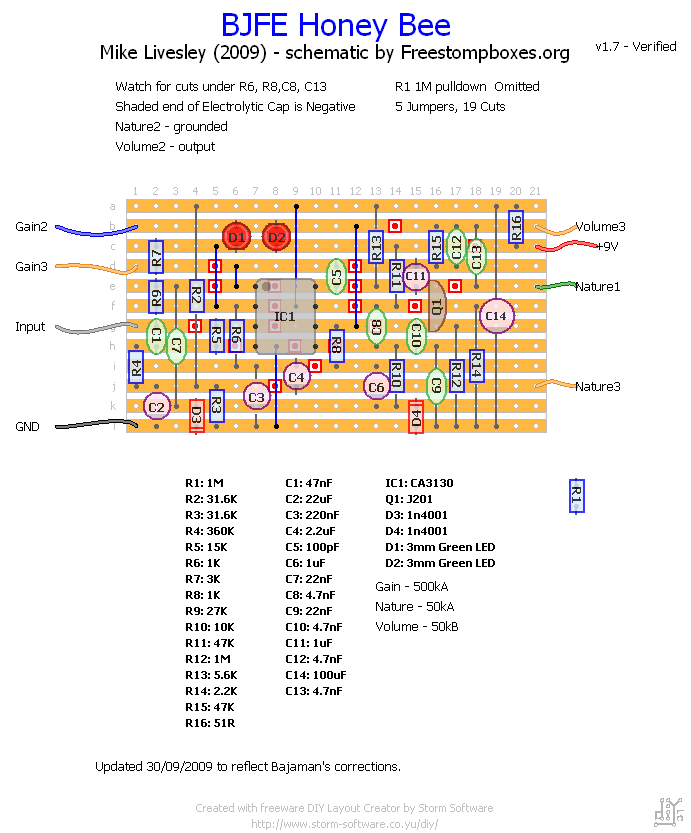

have you tried out the Honey Bee? it gets a lot of stink on smoe other forums but i've never heard a decent demo of one

markleton · Post by **markleton** » Sat Feb 13, 2010 12:57 pm

Thanks for these, I just knocked together a bass fuzz and it worked first time. Woo. A request though, could you possibly give a diagram on how the switch and jacks are wired to the circuit?

Mustang Melx · Post by **Mustang Melx** » Sat Feb 13, 2010 4:38 pm

Cheers Mike, I think that Fuzzface might be my first venture in doing things for myself....

... if you have time to do some more simple ones fuzz/boost/ etc they would be very much appreciated.

matt.dines · Post by **matt.dines** » Wed Feb 24, 2010 1:43 pm

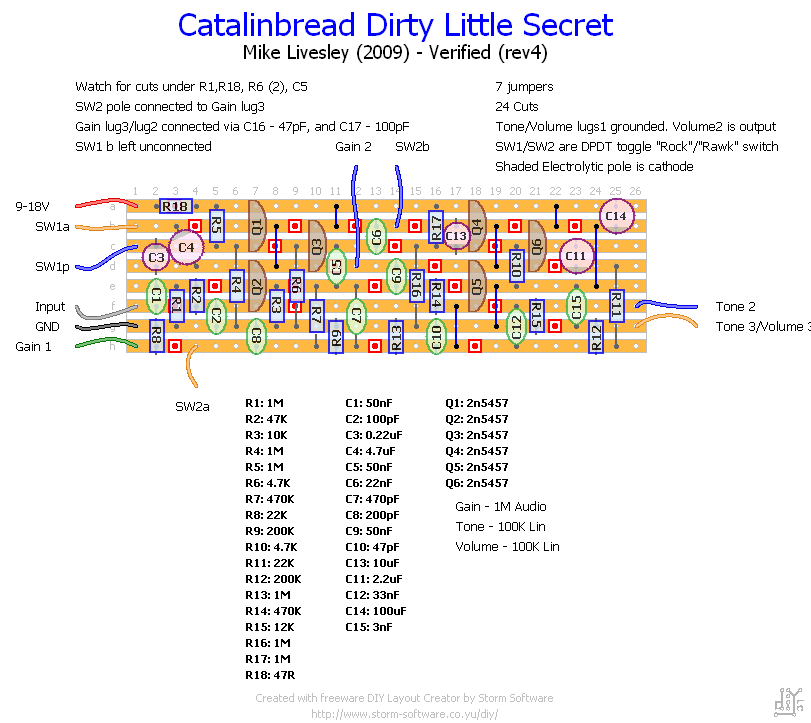

cheers mike im gunna do summut along the lines of your dls circuit this month or so
i really appreciate your efforts, ill take photos of my progress!
cheers matt

Post by **Mike** » Wed Feb 24, 2010 2:03 pm

No worries. I'll get some simple ones up shortly.

Post by **Mike** » Wed Feb 24, 2010 2:07 pm

matt.dines · Post by **matt.dines** » Wed Feb 24, 2010 2:22 pm

man your such an asset to this site!
iv got too many circuits to try!!
iv just gots the bits for the dls too!

endsjustifymeans · Post by **endsjustifymeans** » Wed Feb 24, 2010 2:29 pm

matt.dines wrote:man your such an asset to this site!

understatement.

sp3k · Post by **sp3k** » Wed Feb 24, 2010 2:35 pm

Thanks again mike!

btw, the a\b has 3 switches?!?!

Post by **Mike** » Wed Feb 24, 2010 2:39 pm

Yeah the A/B was designed for Ends, I believe it has a Saltbooster on/off switch, an A OR B switch and an A AND B switch. Basically it's routing one signal, the input through an optional Saltbooster and then to either amp A, amp B or amp A and Amp B

endsjustifymeans · Post by **endsjustifymeans** » Wed Feb 24, 2010 2:40 pm

Mike wrote:Yeah the A/B was designed for Ends, I believe it has a Saltbooster on/off switch, an A OR B switch and an A AND B switch. Basically it's routing one signal, the input through an optional Saltbooster and then to either amp A, amp B or amp A and Amp B

Works a charm. Love that pedal, really increased the versatility of my Mig.
